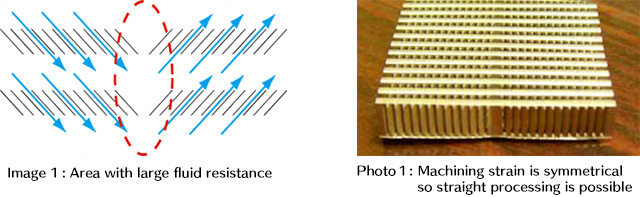

The existing louver fin is formed by cutting and raising the fin sheet symmetrically at the fin center. Because of this structure, the gas entering the fin is forced into the inclination direction of the louver and flow in a chevron shape causing fluid resistance in the center area. (Image 1, photo1)
|
